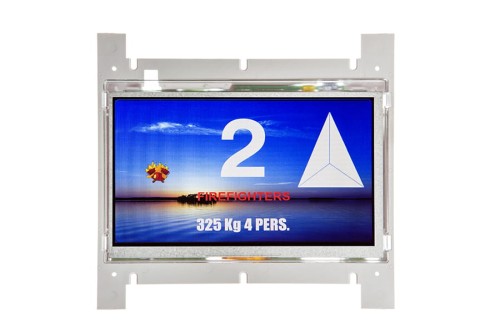

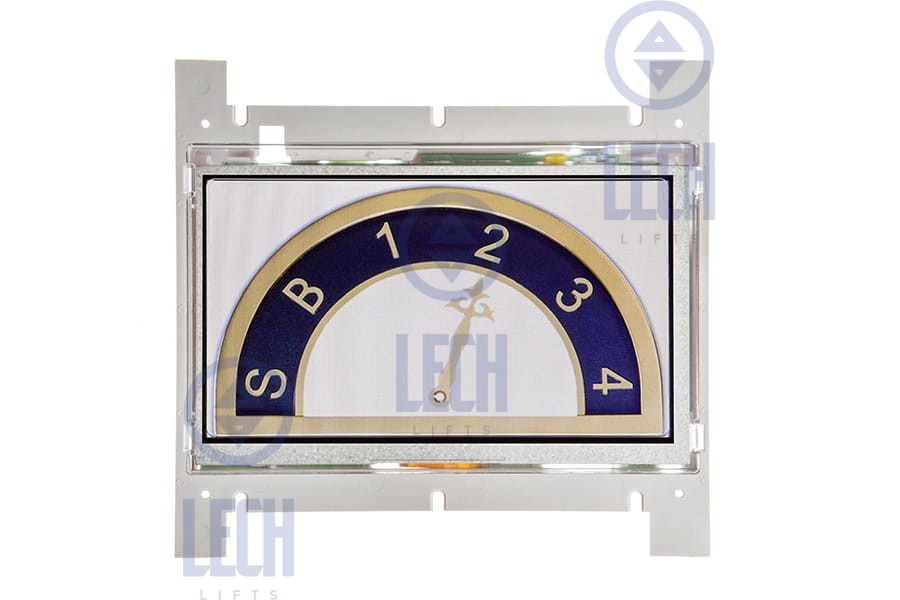

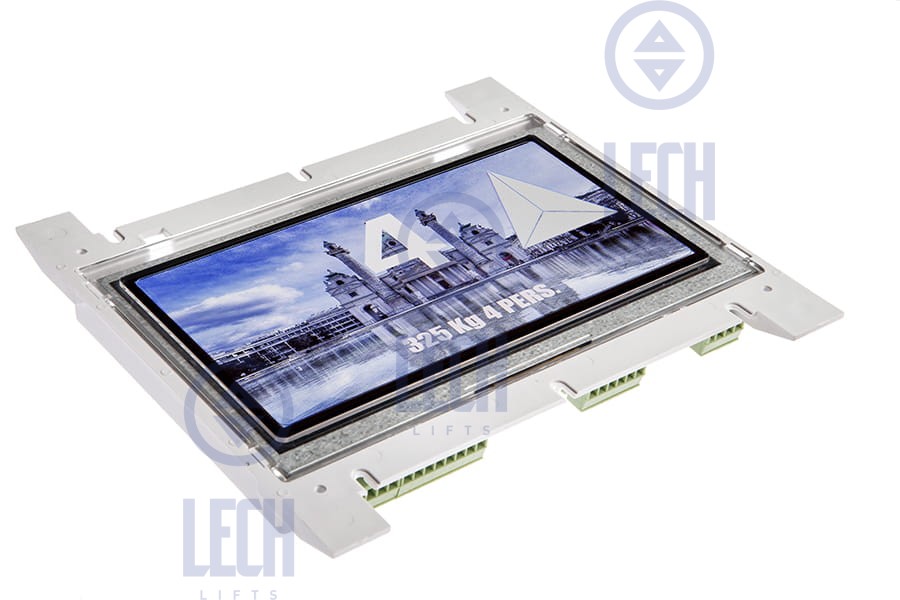

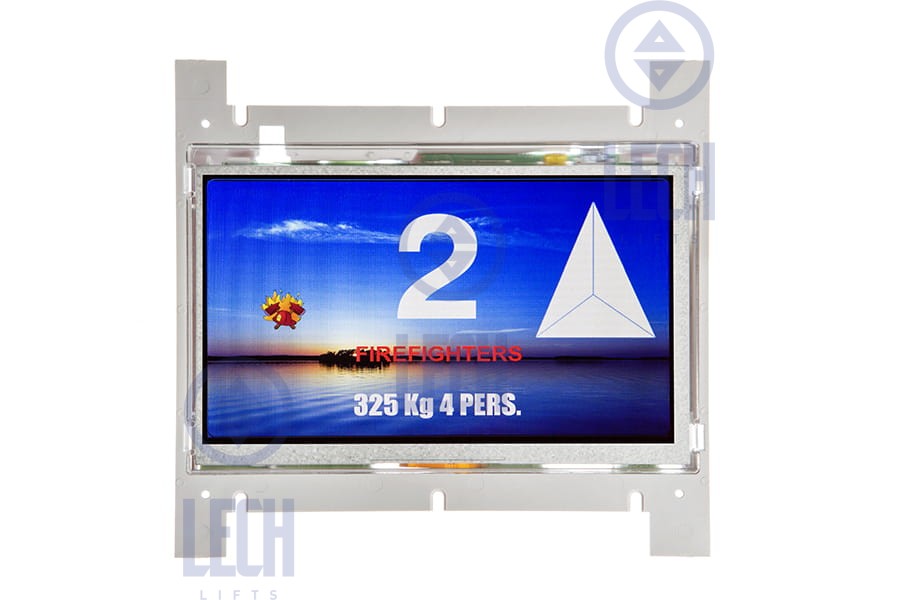

Wyświetlacz sterowania dźwigu / windy - IRIS 7" cali, producent VEGA

Dostępność: dostępny na zamówienie
Ocena: 0
Producent: VEGA
Kod produktu: D5A9-17264

Opis

Wyświetlacz sterowania dźwigu / windy - IRIS 7", producent VEGA



Main Features

  • Easy configuration through software or PC.
  • Updating by SD-CARD.
  • Customizable background, arrows, floors, logo and signaling.
  • UNI EN 81-70.
  • Customizable background with pictures and sounds (for car position indicators).
  • Energy saving system mode (stand-by).
  • Easy keypad for the selection of the main features (buzzer volume, communication interface, first floor, brightness, stand-by duration).
  • Integrated emergency light.
  • Communication interface: Vega serial, RS485, CAN, parallel and magnetic sensors
  • Mounting: protection case.
  • Mounting: horizontal and vertical.
  • Voice synthesizer on board (only IRIS 7”).
  • Calendar and temperature.
  • Software updating is available by USB port on a button in the car.


Technical features
  • Dimensions: 5.6” / 7”.
  • Visible area: 5.6”: 115.20 x 86.40 mm / 7”: 154.1 x 86 mm.
  • Resolution: 5.6”: 640(RGB) x 480 -VGA / 7”: 800(RGB) x 480 -WVGA.
  • Pixel (mm): 5.6”: 0.198x0.198mm / 7”: 0.1926 x0.1179 mm.
  • Colours: 5.6”: 65.000 / 7”: 16m.
  • Energy consumption: 5.6”: 5W / 7”: 360mA.
  • Power supply: 5.6”: 12/24 Vdc / 7”: 12÷24 Vdc ±10%.
  • Temperature range: 5.6” / 7”: -20/+70°C.
  • Encumbrance: 5.6”: 150x104mm / 7”: 178x166mm.

  • IRIS 5.6": Voice synthesizer.
  • IRIS 7" VANDAL PROOF:
    • 10 mm glass thickness;
    • watertight seal.
