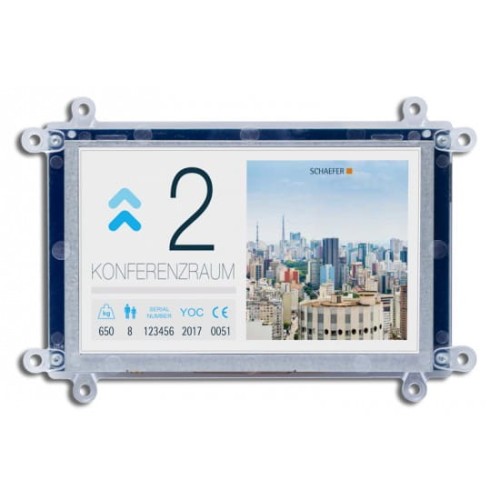

Wyświetlacz do sterowania TFT 5" SCHAEFER
Opis
W ofercie wyświetlacze TFT 5" do sterowania.
fixing | |
Mounting | horizontal or vertical |
Welding studs | M3 × 8 |
Adhesive fixing | x |
Faceplate thickness | 1 mm / 2 mm |
Installation depth | < 10mm |
Connectivity | |
JST | ZHR 0,14 mm² / AWG 28 - 24 |
Control | |
Dual | x |
Gray | x |
1 out of n | x |
Electrical data | |
Power supply (smoothed) | 12 - 30 V DC |
Current consumption (24 V / 10% luminosity) | typ. 150 mA |
Current consumption (24 V / 100% luminosity) | typ. 250 mA |
Polarity | |
Common anode or common cathode | x |
Display characteristics | |
DisplayScreen diagonal | 5" |
Resolution | 800 × 480 |
Aspect ratio | 16:10 |
Display area | 112 × 67.9 mm |
Supported colours | 16.7 mio. / 24 Bit / RGB |
Luminosity | 800 cd/m² |
Backlight | LED white |
Service life | 50,000 h |
Special texts/graphics (also as full screen) | x |
Number of floors | 64+ |
Date/Time | x |
Acoustic properties | |
Gong | x |
Announcements | x |
Loudspeaker (option) | x |
Output rating | 1 VA (sinusoidal) at 24 V |
Arrow | |
Arrow (travel up | travel down) (travel as animation) | x |
Other | |
Temperature range | 0 - +65 °C |
Configuration | On site via menu or via TFT Config Kit. |
microSD | x |
Pane | |
Pane (crystal clear) | x |
Compliance | |
EN 81-70 | with optional "Speaker 50" |
